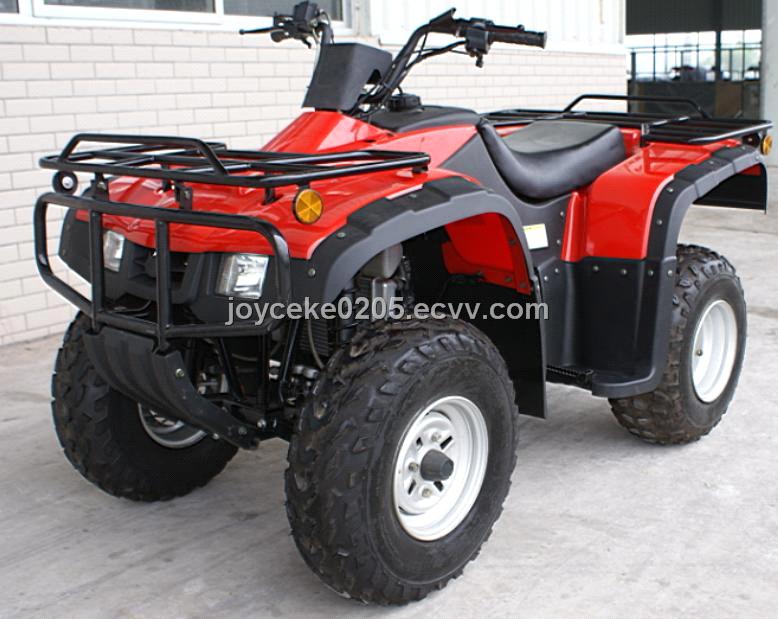

ATVs(50-500cc)

Detailed Product Description

Engine
Type:	Single cylinder、water-cooling、vertical、4-stroke、inner reverse gear
Ignition mode:	CDI
Compression ratio:	10:1
Start mode:	Electric
Fuel tank capacity:	15L
Transmission mode:	Shaft drive
Displacement:	271.9ml
Maximum Power:	14/6500kw/rpm
Horse Power:	HP
Max.torque:	23/4500 N.m /rpm
Min.ground clearance:	160mm
Max. speed	≥66km/h
Battery:	12V,14Ah
Transmission:	5 speed, reverse gear, manual clutch
Bore & stroke:	73×65mm
Engine oil:	1.4L
Lubrication:	SF-15W/40 or press splash
Parking brake:	Manual handle (mechanical)
Chassis
Front wheels:	23×7-10
Rear wheels:	22×10-12
Break type (F/R):	Disc/disc
Front suspension:	Double arm-swing
Rear suspension:	Independent axle
Dimension
Product dimension:	1880×1050×1160mm
Packing dimension:	1955×1055×845mm
Wheelbase:	1160mm
seat Height:	810mm
Vehicle weight:	226kgs
Load capacity:	165kgs
Climbing angle:	≥25°
Min. turning radius:	2200mm
Max. number of riders:	1
Others
Container loading:	Qty/20’ GP: 12 units
	Qty/40’ GP: 24 units
	Qty/40’ HQ: 36 units
color:	Red,black,blue,army green, camouflage green
Payment Terms:	T/T or L/C
Delivery Time:	30 days after advanced payment

FOB Price:

USD1540-1540FOB CHONGQING
