Tumbling basket blast cabinet consists of cabinet enclosure, cyclone
reclaimer, dust-collector, and electrol control, etc. The blast room is
specially designed to have a basket containing large number of small
parts and tumble over automatically. It offers efficient processing to
clean, peen, deburr, or finish small parts, most suitable for automotive
rebuilders and small parts manufacturers.
Adoptable blasting media: Fused alumina, silicon carbide, garnet, glass
bead, etc, grit 60#-100#.
Features:
1. Long rubber gloves resist wear and protect operator.
2. Ceiling-mounted for extraordinary visibility.
3. Safety interlocks interrupt blasting if the door is opened.
4. 3mm steel plate welded construction, with roperly formed bends, forms a rigid, longlasting
cabinet shell.
5. Double glass window, tool-free inner glass changes.
6. Pressure regulator, gauge, timer and electric switch mounted within easy reach.
7.Finishing time duration is controlled by timer to achieve the expected finishing state without labor force.

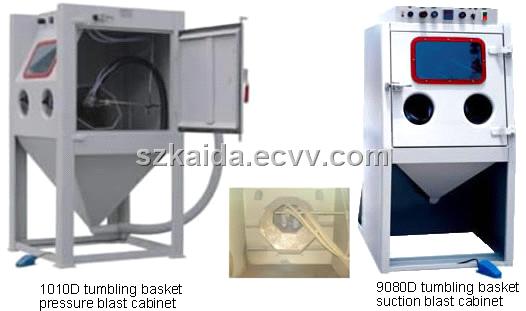

specifications: Model: 9080D tumbling basket suction blast cabinet
Main cabinet: 1300 x 900 x 1600 mm
Weight: 320 kg approx.
Blasting room: 900 x 800 x 580 mm
Basket size dia: 204 x 318 mm,
Basket speed: 8.0 rpm
Basket motor: 380V/3ph/50Hz, 200W
Exhauster motor: 220V/1ph/50hz, 370W
Exhauster air: 8.5 m3/min
Illuminance: 2 x 13W
Suction Blasting gun: 2 pc, including Boron carbide nozzle dia 8mm
Dust Collector: dry filter type, 16 filter bag
Dust Clearing Manually, press the vibration button to clear away the dust every 4 hours.
Compressed air source 5-7 bar, 1.6-2.0 m3/min dry clean compressed air
Adoptable media: brown fused alumina, glass beads, garnet, #60-100
Model: 1010D tumbling basket pressure blast cabinet
Main cabinet: 1350 x 1000 x 1920 mm
Weight: 400 kg approx.
Blasting room: 1000 x 1000 x 1000 mm
Basket: dia. 320 x 310mm, 8.0rpm
Exhauster: 550W, 8.5m3/min
Pressure Blasting nozzle: 2 pc, Boron carbide, dia 8mm
Dust Collector: filter bag type, 16 bags.
Dust Clearing: Manually, press the vibration button to clear away the dust every 4 hours.
Compressed air source: 5-7 bar, 1.6-3.0 m3/min dry clean compressed air
Adoptable media: brown fused alumina, glass beads, garnet, #60-100
