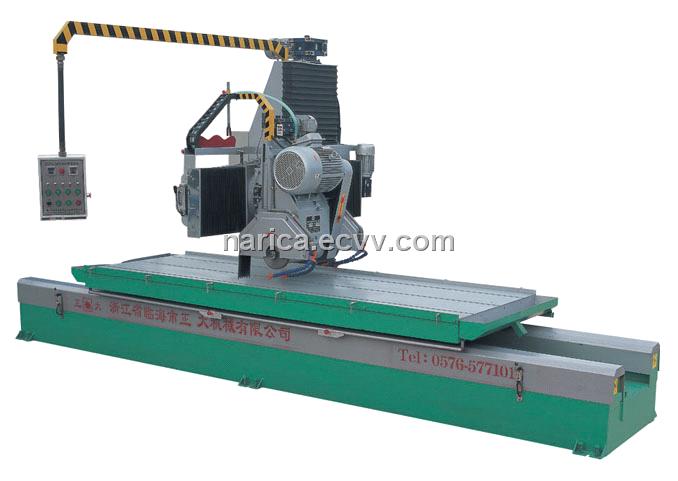

ZDFX PLC automatic profiling cutter

Major technical paramters:
Processing dimension:300x1200x800mm
3500x1200x800mm(Customized)
Applicable saw blade:φ350xφ500mm
Main engine power:11kw
Total power:14.35kw
Total weight:3T
Outline dimension:1800x1800x2400mm




STRUCTURE AND FEATURES:
   This Machine adopts the high-tech principles such as computer fully artomatic control profiling and photo probe, frequency conversion and so on.Before processing,it needs to put a shaped boad,then the photo probe will automatically scan according to the shaped board.It can arbitrarily process all kind of heterogenous type of lineation.It is of double saw blades cutting and fully automatic control.novel with novel design and compact structure. The main electric components employ the superior elements with stable and reliable performance.
