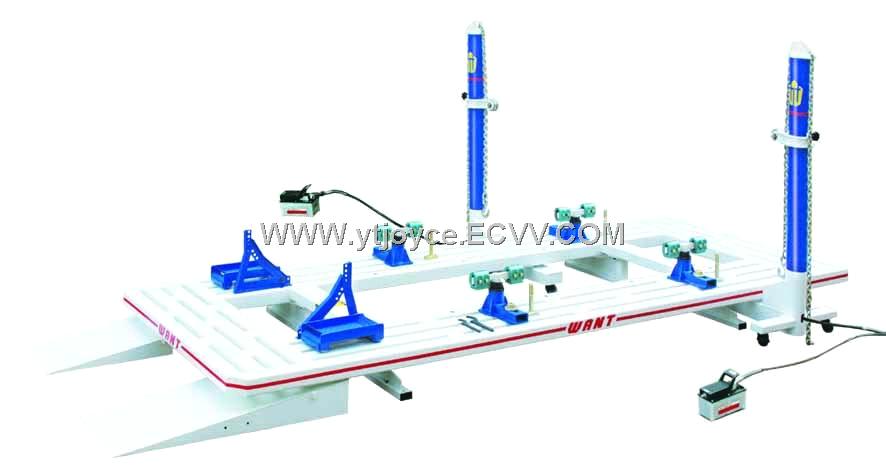

Auto Straightening Bench W-900

1.The work platform facilitates any accident-handling vehicle up and down without cranes.

2.The hydraulic twin-pulling tower can flexibly work at an angle from 0 - 360' and can accommodate the distance bettwen the tower pole and the platform, the oil cylinder operates perpendicularly with an accurate and strong pull force.

3.The imported assembled hydraulic system from the U.S.A. is powerful, reliable and of a long service life.

4.The standard work platform can be matched with general mechanical measuring system and can be used easily.

5.A data manual for various models of different series of latest cars is provided, with body data information from database presented by Corporation and domestic big automobile companies.

6.A complete plate work stretching and pulling tool kit is furnished, considering any type of reshaping and the kit is convenient .

SPECIFICATIONS:

Platform Length.................5000mm

Platform Width.................2000mm

Platform Height.................300mm

Hydraulic Pressure.........70MPa (10000psi)

Post Max. Tension........95KN

Post Working Rang ........360degree

Pneumatic Pressure Range.......0.8MPa

Total Weight.....................2200kg
