offer dish end

Dear Sir or Madam,



Here is our capacity about dished end.

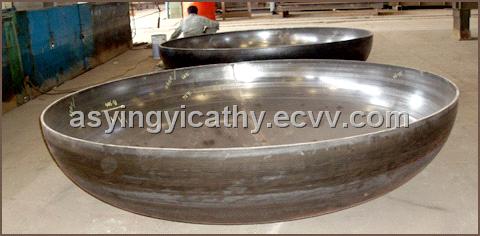

1. Our company can manufacture elliptical dish end, flat bottom dish end, disc dished end, hemispherical dish end, conical dish end, flanged dish end, flanged edge sphere arched dish end, flat top dish end, expansion joint, boiler tube plate (dish end), sperical arched dish end, U-type revert ring, cone, cone flanged edge (inner & outer) and so on.

2. For above mentioned items: EHA

Spinning capacity:

Range of inner diameter: Dia.700~Dia.6000

Range of thickness:

Dia. 700                       thickness 6-16mm

Dia. 800~Dia. 1400       thickness 6-20mm

Dia. 1500                     thickness 6-28mm

Dia. 1600~Dia. 1700     thickness 6-30mm

Dia. 1800~Dia. 1900     thickness 6-32mm

Dia. 2000~Dia. 6000     thickness 6-40mm

Punching capacity:

Range of inner diameter: Dia.250~Dia.3400 (integral sizes)

Range of thickness:

Dia.250                    thickness 4-6mm

Dia.300~Dia.400       thickness 4-18mm

Dia.450                    thickness 4-16mm

Dia.500                    thickness 4-20mm

Dia.550                    thickness 4-14mm

Dia.600                    thickness 4-26mm

Dia.650~Dia.1100     thickness 4-32mm

Dia.1200                  thickness 6-40mm

Dia.1200~Dia.1500   thickness 8-40mm

Dia.1500~Dia.2400   thickness 12-40mm

3. EHB is according to the tube diameter under Chinese Standard (GB) basically.

Here we will not introduce the other manufacturing capacity one by one.

Anyway, if you have any requirements, please contact us without hesitate.

Thanks for your cooperation in advance.



Best Regards,
