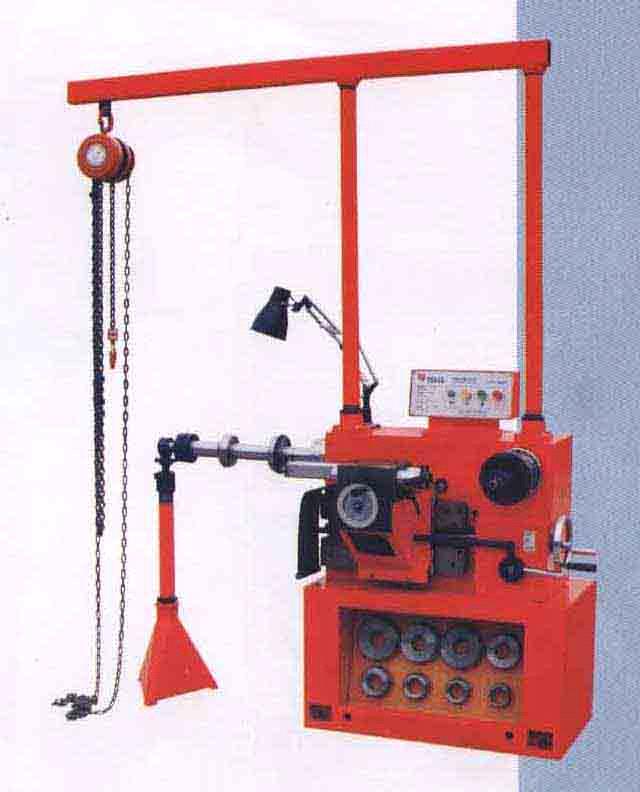

Brake drum/disc cutting machine

Brake drum/disc cutting machine

Brake drum/disc cutting machine

  Prev Product Contact Now Next Product

Detailed Product Description

Brake drum/disc cutting machine
Model:T8465
Main specification:
Drum diameter capacity: 180-650mm
Disc diameter capacity: <=500mm
Spindle speed(r/min) three grades:  25, 40,70
Tool post travel  :  250mm
Feed rate:  0.16mm/r
Motor: 1.1/1400 KW/rpm
Power  :   380V/50Hz ,3 phases, 3A
Packing size:  960*1330*1230mm
Net weight:  580kg

Model: T8445A (for single feed speed 0.16mm/r)
Main specification:
Drum diameter capacity: 180-450mm
Disc diameter capacity: <=400mm
Spindle speed (r/min) three grades: 30,50,85
Tool post travel:  170mm
Feed ra (two steps) te:0.3mm/r and 0.16mm/r
Motor: 1.1Kw /1400 rpm
Power: requirement:3A
Dimensions:720*850*1140mm
Net weight: 360kg

Model:T8445(FCV)
Main specification:
Drum diameter capacity: 180-450mm
Disc diameter capacity: <=400mm
Spindle speed (r/min) three grades: 30,50,85
Tool post travel:  170mm
Feed rate: 0-0.5mm/min
Motor: 1.1Kw /1400 rpm
Packing size: 820*1080*1280mm
Net weight/ Gross weight: 320/350kg
Post Date:5/14/2008
Expiry Date:5/9/2009
