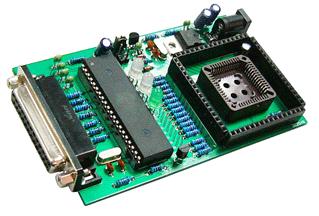

Motorola 705 Programmer

Detailed Product Description

Easy to use DOS, Windows 95 / 98 / NT / 2000 / XP software
Onboard processor
Device selection by 4 jumpers
2 color LEDs indicates mode of operation, security condition (check option available without PC)
LPT port self-check function on a board
52PLCC PGA socket on a board and additional adaptor for 64QFP device in complete
Supported Devices
MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32
Package Included
One 705 programmer
One MC68HC705B16 QFP-64
Additional items you'll need to use this tool
Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500MA power adapter.
Note: You may purchase a 12V power adapter in this site if you like.
CAUTION!
On the D53J mask set (MC68HC05X32) , DIV10 is forced in bootstrap mode. So 20 MHz Crystal must be used with this device.
