Endoscope

Detailed Product Description

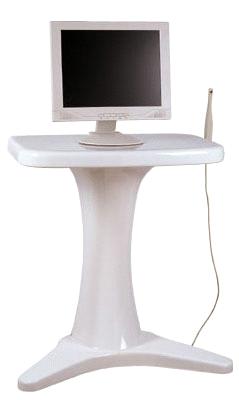

The installation of LCD is classified into desk-top type and load-supporting type, which can effectively utilize the space; the installation and operation are easy, which it is convenient for the fentist to communicate with the patients. 1 or 4 pictures can be taken, which is easy for the observation and comparison.

DISPLAY AND POSITIONING SYSTEM:
●	15〞LCD monitor: 1024×768 resolution,DB15VGA input terminal; with AV video frequency, S video frequency
●	Positioning device: provided inside the LCD; 4 separate frames
●	Pedal: positioning operation

ENDOSCOPE HAND LEVER:
●	Sensor: 1/4〞high sensitivity CCD
●	Resolution: (752×582)PAL System
●	Definition: 470 lines
●	Sensitivity: 2 Lux
●	Light source:LED
●	Adjustment: Automatic
●	View angle: 80°
●	Hand lever specification: L:200mm;W:25mm;H:22mm
●	Weight of hand lever: 50g
●	Power consumption: 12VA
