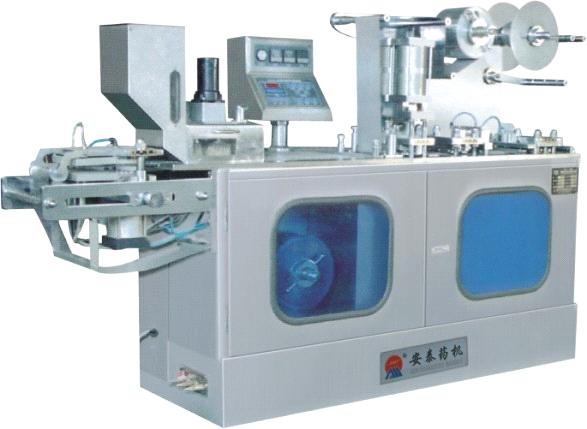

DPB-140E Flat Plate Auto Blister Packaging machine

It is adopted with micro-computer PLC, touch panel operation, frequency speed regulation, adjustable stroke, convenience of operation, firm structure, well function; it is the ideal packaging equipment. It has passed Province technology production authentication.
FEATURES:
1. The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running.
2. Adjustable stroke can be suitable for various packaging, especially for the production requirements of small batch and various kinds of products.
3. Flat plate structure, can pack some special shaped products, such as elliptic shape, square  shape, triangle shape etc.
Notes:
      1. It can be equipped color-code register sealing device.
Main Technical Parameters

Cutting Frequency (Times/min)	6-35
Capacity (10 thousand pcs/h)	2-11
Max. Forming area and depth (mm)	140*110*14
Stroke (mm)	40-120 (can be designed as customers requirements)
Standard Plate(mm)	80*57 (can be designed as customers requirements)
Air Pressure(Mpa)	0.4-0.6
Air supply	≥0.2 m3/min
Total Power	380V/220V 50Hz 3.6kw
Main Motor Power (kw)	1.1
PVC Hard Pieces(mm)	0.150.5*140
PTP Aluminum Foil(mm)	0.02-0.035*140
Dialysis Paper(mm)	50-100g*140
Mould Cooling	tap water or recycling water
Overall Dimensions(mm)	2300*560*1410(L*W*H)
Weight (kg)	600

FOB Price:

USD11000-13000Shanghai or Ningbo
