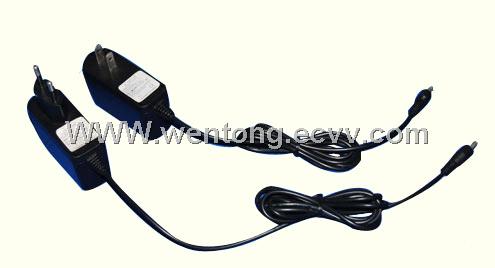

12W AC adaptor,switch power supply

WT-B-012 series AC adaptor/switch power supply
part No.          Voltage(V)  Current(A)    Power Rating(W)
WT-B-012-03   3.3V           0~2.5A       8.3W
WT-B-012-05   5.0V           0~2.5A       12.5W
WT-B-012-07   7.0V           0~1.7A       12.0W
WT-B-012-09   9.0V           0~1.3A       12.0W
WT-B-012-12   12.0V          0~1.0A       12.0W
WT-B-012-15   15.0V          0~0.8A       12.0W
WT-B-012-18   18.0V         0~0.7A       12.6W
WT-B-012-24   24.0V         0~0.5A       12.0W

Product Type:Charger
AC Input Voltage:100-240Vac
AC Line Frequency:47-63Hz
AC Input Current:0.3A
Load Regulation:+/-5%
Min.O/P Current:0Amp
Operating Temperature:0-40℃
Protection:SCP、OVP、OCP、MTBF：≥35，000Hrs
Dimension:L78.5*W49.5*H30mm L74.5*47*H29.5mm
Application:Network Peripherals,Server/harbor/Digital...etc.
