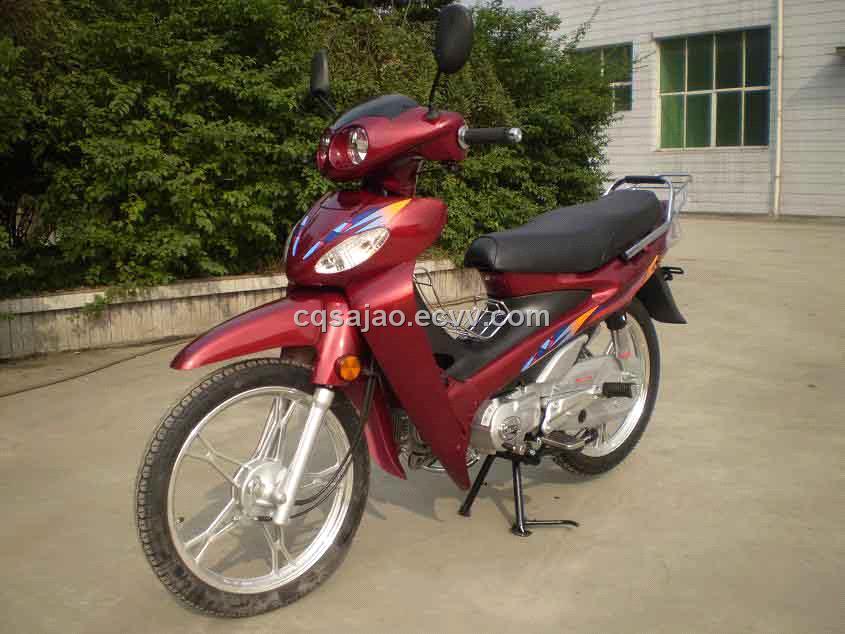

CUB MOTORCYCLE 110CC,90CC,70CC,50CC

Model SJ110-9B

Main Feature: 110cc. 4 stroke, electric&kick start, automatic clutch, front disc &rear drum brake
Specifications:
Engine type: Single cylinder, air cooling, 4 stroke Clutch: Automatic
Ignition method: C.D.I.

Start method: Electric&kick

Transmission: Chain

Displacement(ml): 107
Bore*stroke(mm): 52.4*49.5

Compression ratio: 8.8: 1

Rated power(kw/r/min): 5/7500
Maximum torque(N. M/r/min): 7/5500

Lubrication: Splash

Gear: 4

Dimensions(L*W*H)(mm): 1960*695*1070

Wheel base(mm): 1208

Seat height(mm): 780

Min. Turning radius(mm): 1800

Min. Ground clearance(mm): 130

Rider capacity: 2

Brake: Front disc&rear drum
Front wheel: 2.50-17
Rear wheel: 2.75-17
Fuel tank capacity(L): 3.5
Engine oil capacity(ml): 800                                                                          Climbing capacity: 15
Max. Load(kg): 110                                                                                 Max. Speed(kw/h): 80
Net weight(kg): 92
Gross weight(kg): 112
