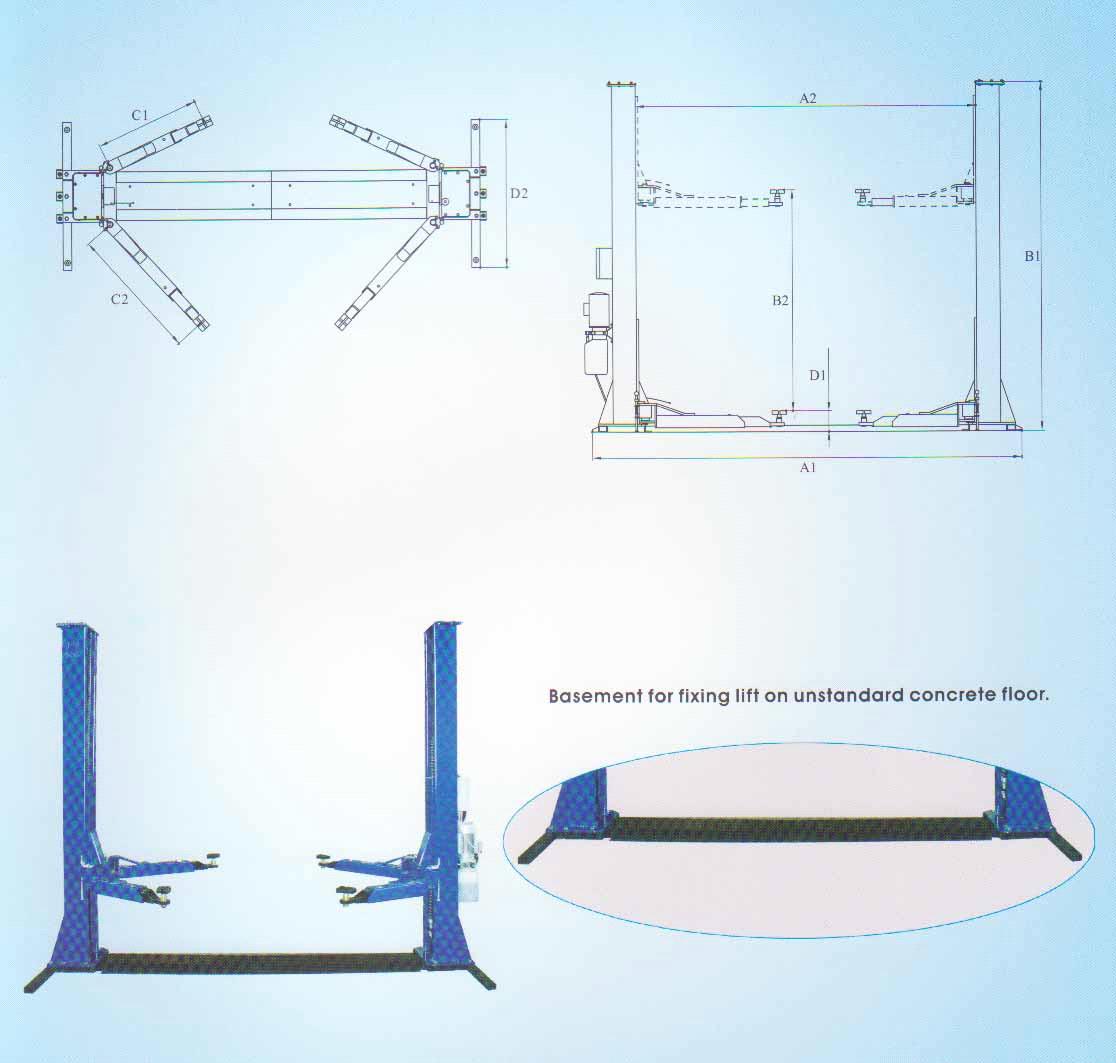

two post lift

Two post lifts:
QJY3.0/QJY3.0/QJY3.5/QJY4.0
This lift can provide safe working place for repair and test
Driven by single cylinder
Heavy load chain
Distance between inside columns: 2760mm
The Limited Raising Device

Item Description QJY3.0
Lifting Capacity: 3000kg
Overall Width: 3384mm
Width between Inside Columns: 2760mm
Height: 2668mm
Lifting range: 1670mm
Length of the short arm: 680-1020mm
Length of the long arm: 860-1300mm
Lowest Height of the disk: 120-205mm
Width of the Bottom Frame: Without
Motor: 380v/50hz
Power: 1.8kw
Ascending Time: <60s
Descending Time: 18-40s
N. W: 680kg

Item: QJY4.0

Description:
Lifting Capacity: 4000kg
Overall Width: 3500mm
Width between Inside Columns: 2756mm
Height: 2838mm
Lifting range: 1790mm
Length of the short arm: 710-1050mm
Length of the long arm: 870-1330mm
Lowest Height of the disk: 115-200mm
Width of the Bottom Frame: 1200mm
Motor: 380v/50Hz
Power: 1.8kw
Ascending Time: <60s
Descending Time: 18-40s
N. W: 760kg
