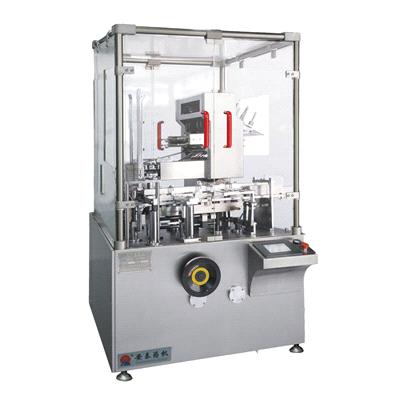

JDZ-120 Automatic Cartoning machine

Detailed Product Description

It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.

Features

1. International famous brand of electric components such for PLC touch screen, frequency inverters etc.

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Automatic detection and rejection device for lacking of blisters/goods or leaflets.

5. Stability performance with lubricate setting and controlling.

Main Technical Parameters

Item		Parameters
Encasing speed		60-120box/min
box	Quality requirement	250-350g/m²
box	Dimension range (L x W x H)	(65-125)mm x (35-90)mm x (12-60)mm
Leaflet	Quality requirement	50-65g/m²
	Unfolded leaflet specification	(80-300)mm x ( 70-210)mm
	Folded leaflet specification(1-4)	(70-210)mm x (20-40)mm
Compressed air	Working pressure	0.5-0.7mpa
Compressed air	Air consumption	120-160L/min
Power supply	220v 50hz
motor power	0.75kw
Machine dimension	1140 x 1160 x 1800(mm)
Machine weight	1000kg

FOB Price:

USD30000-30000Shanghai or Ningbo
