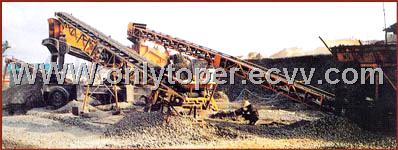

Belt Conveyor

Detailed Product Description

Unique Industrial Equipment Co., Ltd is professional industrial supplier from China.

The types of the belt conveyers are as followings:
1). Divided by Driving Method:
    a) Mechanical Drive I Series
    It?s driven by swing pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
    b) Mechanical Drive II Series.
    It adopts upside-down reducer and belt-drive mechanize.
    c) Electric Rotor Drive Series
    It?s driven by electric rotor, directly transmission.

2). Divided by Installation Method
    a). Fixed Series
    It?s directly installed on foundation.
    b). SDY-Portable Series
    It?s equipped with type for moving and slope adjusting capability, It can be Easily, it can be reely moved and adjusted by different transfer requirements

3). Divided by Structures
    a. U-steel
    b. Frame
    c. Truss

Model Width (mm) Speed (m/s) Capacity (t/h)

TB-400 400 1.3~1.6 40~80

TB-500 500 1.3~1.6 78~191

TB-650 650 1.3~1.6 131~323

TB-800 800 1.3~1.6 278~546

TB-1000 1000 1.3~2.0 435~853

TB-1200 1200 1.3~2.0 655~1284

Any further information you need , contact with us without hesitate .
