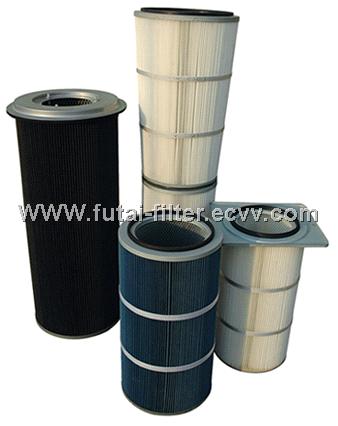

Polyester Air Filter Cartridge with PTFE Media

Detailed Product Description

1. Suitable for the filtration of very fine dust type in welding fumes, mechanical processing,pharmaceutical and construction industries and sticky dust collection.

2. Imported spun bonded polyester with PTFE membrane, microporou offers 99.99+%filter efficiency.

3. Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

4. Excellent resistance to chemical erosion.

5. Electrochemical plate/stainless steel top and bottom, no rust perforated zinc galvanized metal inner core allows good airflow.

6. Applicable temperature: 93-135℃.

Specification
Model	O.D	I.D	Length	Filtration surface(m2)
FT/P3266	Φ324mm	Φ213mm	660mm	9.4m2
FT/P3566	Φ352mm	Φ241mm	660mm	9.4m2
FT/P3275	Φ324mm	Φ213mm	750mm	10.7m2
FT/P3288	Φ324mm	Φ213mm	880mm	12.5m2
FT/P3290	Φ324mm	Φ213mm	915mm	13.0m2

FOB Price:

USD10-20SHANGHAI
