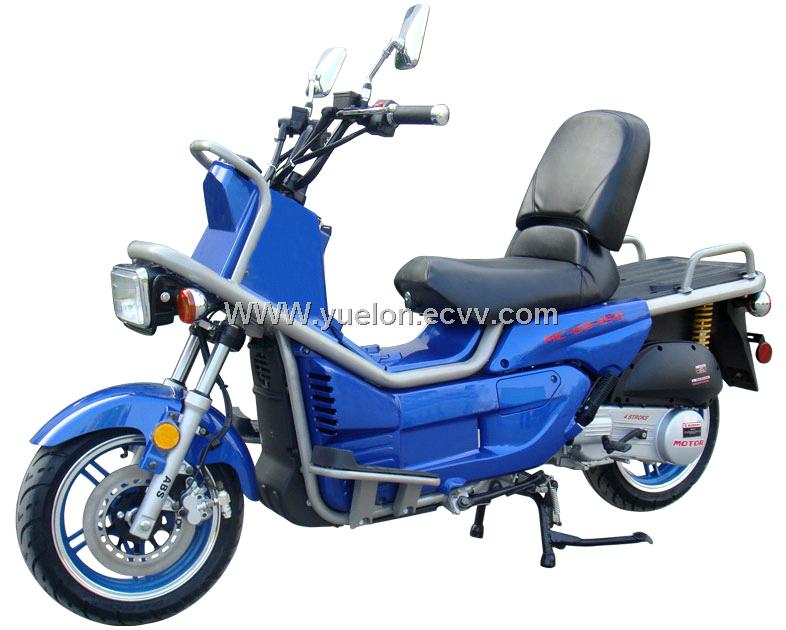

scooter

scooter

scooter

  Prev Product Contact Now Next Product

Detailed Product Description

Engine Type 157QMJ  air cooling
BoreXStroke (mm) 56.5X57.8
Cylinder work capacity (ml) 146.6
Max power (kW/r/min) 7.15/7500+500
Demarcate power (kW/r/min) 7.0/7500+500
Max torque (N. M/r/min) 8.5/6000+500
Idle speed (r/min) 1600+100
Min fuel consumption (g/kW. H) 367
Start method Electric start/foot start
Ignition system C. D. I
Oil feed system Carburetor size PD24J
Tank capacity (L) 12.0
Drive system Wheel rim(front/rear) MT3.5X13 / MT3.5X13
Tyre size designation 130/60-13 / 130/60-13
Control system Brake model Front/Rear Disc brake/Drum brake
Brake type Front/Rear Hand /hand
Electric system Spark plug (mm) A7RTC / 0.6-0.7
Battery 12V7Ah
Headlight Single light
Main capability Max speed(km/h) 90
Economic speed(L/100km) 2.9
Wheelbase (mm) 1475
Min ground clearance (mm) 100
LXWXH (mm) 2100X795X1130
Whole measure: 1950X570X940MM N. W: 138KGS G. W: 160KGS
assembly required: rear mirror, front wheel fender, front tires, steering hand, L/R pedal
Container: 20FCL: 24PCS 40FCL: 48PCS 40FCL: 48PCS
