4 wheel alignments

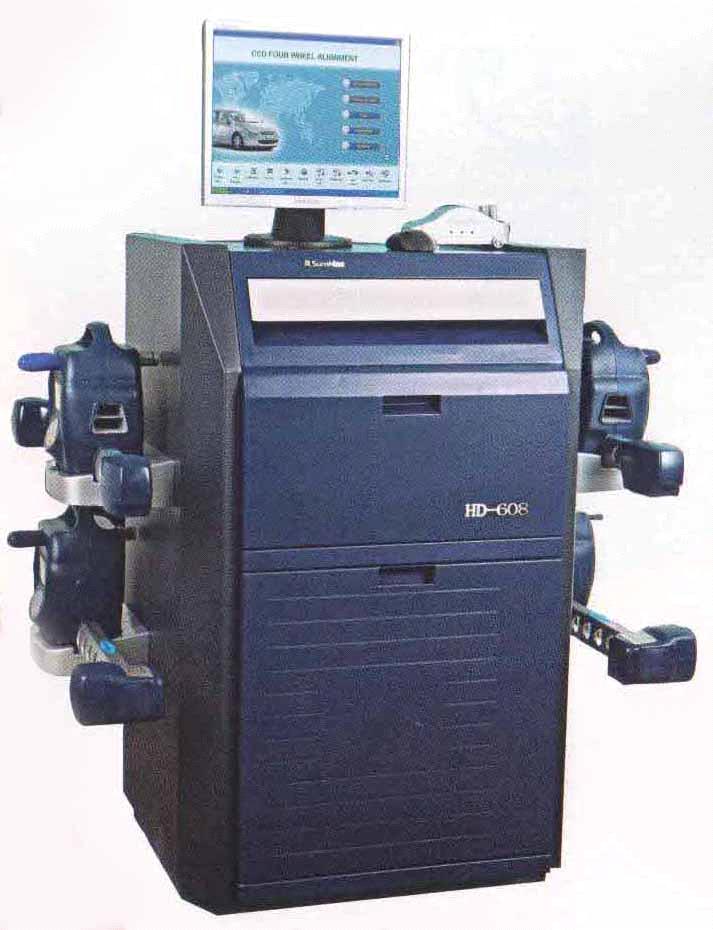

CCD blue tooth dolphin series HD608 four-wheel alignments

Specifications: 900x730x1100 (mm)
Digital video technology makes more accurate data.
Blue tooth technology guarantees the quick transmission and more steady signal.
Four wheels can be more accurately measured by the 8 closed beams of light.
Wide range can meet the requirements of all vehicles
Japan-imported camber sensors assure the accuracy.
The latest patch ciruit technology is adopted.
The electronics level
No. Testing item Measuring range Allowable Error Temperature condition
1 Toe-in of front wheel ±5° ±2' –10°~40°
2 Toe-in of rear wheel ±5° ±2' –10°~40°
3 General toe-in ±10° ±4' –10°~40°
4 Toe-out of front wheel ±10° ±2' –10°~40°
5 Toe-out of rear wheel ±10° ±2' –10°~40°
6 King pin inclination ±20° ±4' –10°~40°
7 Caster ±20° ±4' –10°~40°
8 Thrust angle ±5° ±3' –10°~40°
9 Containment angle ±20° ±4' –10°~40°
10 Retraction angle ±5° ±2' –10°~40°
