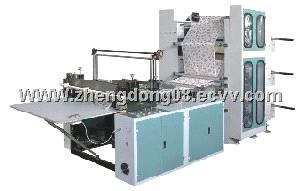

HQJ-600P-4 Computeized High Precision Cross Cutting Machine

Main configuration:

• It adopts PLC programmable logic controller as main control, YASKAWA AC servo actuator for dead length and touch screen.
• INOVANCE vector inverter as speed regulator.
• There are three unwinding devices which suitable for loading three roll paper which diameter of each roll is 500mm
• The machine solved the cut thin paper.

Main technical parameters.

• Max width of cutting                    600mm
• Max dia of unwinding                   500mm
• Cutting length                               200-600mm
• Cutting speed                               20-50m/min
• Cutting accuracy                           more or less 0.3mm
• Weight of paper                            17-70g
• Power required                             6KW
• Weight                                          3000kg
