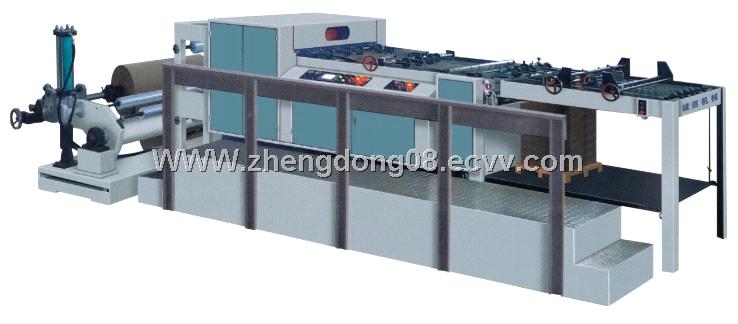

GQJ-1200MG Computerized High Precision Cross Cutting Machine(tracking)

Main configuration:

• It adopts the most advanced technology MIC motion integrate controller as main control, YASAKWA AC servo actuator for dead length and 5.7 inch touch screen.
• Hydraulic liftting device for loading material, with high precision deviation correcting device and auto tension system.
• Digital regulate and inching device.
• Auto insert label and stacking height device.

Main technical parameters.

• Max width of cutting                1200mm
• Max dia of unwinding               1600mm
• Cutting length                           400-1200mm
• Speed                                      100-250m/min
• Cutting accuracy                       more or less 0.3mm
• Weight of paper                        55-550g
• Heaping height                           1300mm
• Power required                          26kw
