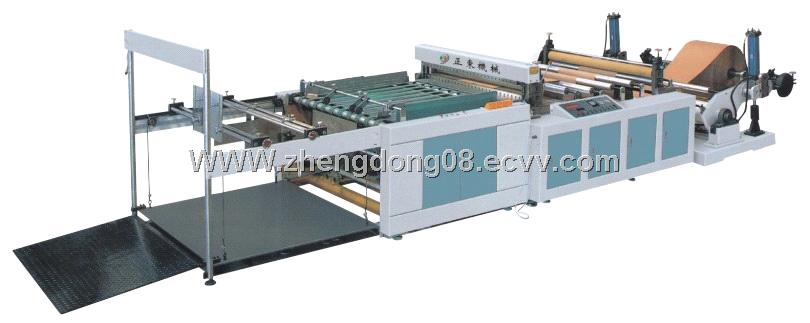

HQJ-1300P-3 Computerized High Precision Cross Cutting Machine

Main configuration:

• Main control: PLC , PANSONIC AC servo actuator and touch screen.
• It adopts vector inverter as speed regulator.
• Auto following arm swinging with active feeding amterial.
• Hydraulic liftting device for loading material.

Main technical parameters:

• Max width of cutting                    1300mm
• Max dia of unwinding                    1600mm
• Cutting length                               200-1300mm
• Speed of cutting                            50-75m/min
• Weight of paper                           100-350g
• Cutting accuracy                           more or les 0.3mm
• Power required                              8kw
• Weight                                            3800kgs
• Oveall dimension                            6500*2300*1700mm
