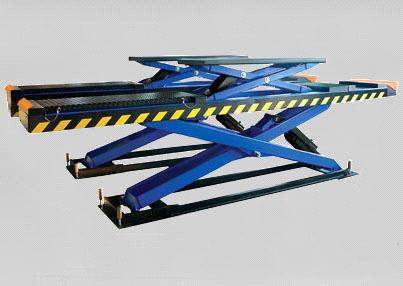

automotive wheel alignment scissor lift

Detailed Product Description

APPLICATION

Floor-recessed mounted version, is extremely suitable for wheel alignment work.

FEATURES:

l the hydraulic synchronization system with tandem cylinder prevents uneven lifting or lowering of the load.

l The level of the lifting platform can be adjusted in high precision.

l The secondary lifting platform is extensible.

l The integrated emergency lowering device allows the lift to be lowered in the event of a power failure.

l pneumatic double-teeth self-locking system.

l self-lubricating bearings are maintenance free and reliable.

l filler sheets are used for adoption to different wheel bases.

l sliding plates rotational movement +/-10o,lateral movement +/-50mm.

TECHNICAL PARAMETER

Capacity

main---------------------------- 3500kg

jack----------------------------- 3500kg

Max lifting height

main-----------------------------1700mm

jack------------------------------450mm

platform dimension----------4200mm*600mm

power supply------------------220V/380V 50Hz

motor performance----------2.2KW

compressed air supply------6-8kg/cm²

weight---------------------------1760kg
