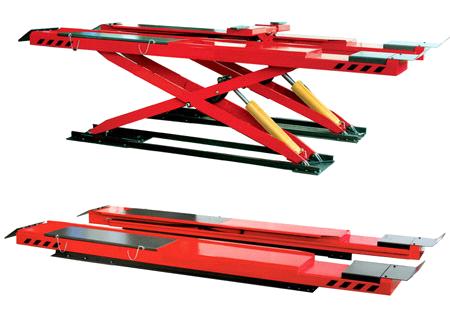

full rise wheel alignment scissor lift

Detailed Product Description

APPLICATION

Floor surface mounted version, suitable for vehicle reception, service work and wheel alignment.

FEATURES:

1. very low drive-on height—180mm.

2. the hydraulic synchronization system with tandem cylinder prevents uneven lifting or lowering of the load.

3. platform level can be well adjusted to meet the need for wheel alignment.

4. all pivot points made with self-lubricating bearing for long life.

5. the position of the front wheel rotary table (optional part) is adjustable and suitable for various type of automobile.

6. sliding plates rotational movement +/-10o,lateral movement +/-50mm.

TECHNICAL PARAMETER

capacity---------------------- 3500kg

lifting height-----------------180-1750mm

platform dimension---------4000mm*635mm

power supply-----------------220V/380V 50Hz

motor performance----------2.2KW

compressed air supply------6-8kg/cm²
