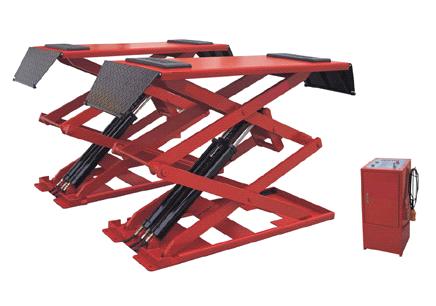

auto scissor lift

Detailed Product Description

APPLICATION
Floor-recessed mounted version, convenient for tyre operation and wheelbase maintenance.

FEATURES:
1. the hydraulic synchronization system with tandem cylinder prevents uneven lifting or lowering of the load.
2.   all pivot points made with self-lubricating bearing for long life.
3. no mechanical connections between the platforms, this provides perfect workspace and maximum freedom of action underneath the vihicle.
4. The integrated emergency lowering device allows the lift to be lowered in the event of a power failure.
5. extendable lifting platform.
6. pneumatic double-teeth self-locking system.

PARAMETER
capacity------------------------- 3200kg
lifting height---------------------1800mm
platform dimension------------1500mm*480mm
power supply--------------------220V/380V  50Hz
motor performance--------- ---2.2KW
compressed air supply--------6-8kg/cm2
weight-----------------------------880kg
