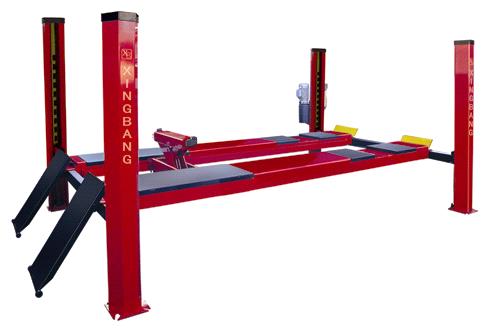

Four Post Lift

Detailed Product Description

APPLICATION

The electro-hydraulic four-post lift is a perfect choice for precise wheel alignment and repair work.

FEATURES

1. the wire rope fracture protection comprising a eccenter combination locks the driving surface in position when the rope tension slackens.

2. equipped with a drop-off facility which guarantees exact axle measuring and a high degree of safety at the workplace.

3. the level of the platform can be adjusted in high precision.

4. the position of the front wheel rotary plate(optional part) is adjustable so that the sliding plate can be fit for more cars.

PARAMETER

capacity---------------------- 3500kg

max lifting height

main-----------------------1500mm

jack------------------------350mm

lifting time-------------------60s

lowering time----------------60s

overall dimensions---------5390mm*3180mm*2020mm

power supply-----------------220V/380V 50Hz

motor performance----------2.2KW

weight-------------------------1500kg
