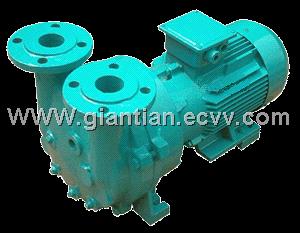

2BVC series WATER-RING VACUUM PUMP

2BVC Series Water Ring Vacuum Pump and compressor is mainly used for sucking gases and water vapour. The ultimate suction pressure can reach 33mbar (97% vacuum) . When working under suction pressure below 80mbar long time, it should be connected with cavitation resistant pipe. The suction pressure can reach 10mbar if assembling with an air ejector. As a compressor, the ultimate pressure can reach 0.26MPa.

Characteristics: 1. Motor:Inline,direct connection with the pump, saving space and easy to install.

2. Mechanical seal: No leakage and easy to maintain.

3. Firm performance and low noise (can be as low as 62 db(A))

4. Bronze impeller improves the corrosion resistance; Stainless steel vacuum pump can meet higher requirements for corrosion resistance.

5. Special flexible outlet design ensures no over-compressing and firm performance under design conditions.
