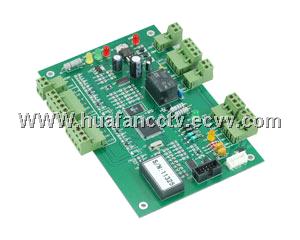

Access Control(HF-A01)

Product Introduction:

The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports...

Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...

Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

Technical Specilication:

HF-A01 HF-A01.NET HF-A02 HF-A02.NET HF-A04 HF-A04.NET Board dimension 160*106 mm 160*106 mm 218*106 mm Door control one door tow doors four doors Communication Protocol RS232 RS485 TCP/IP RS232 RS485 TCP/IP RS232 RS485 TCP/IP Number of readers 2 readers 4 readers 4 readers Relay 1 2 4 Datebase Support ACCESS

Baud Rate 9600 bps for RS232, 10/100M for TCP/IP Operating Temperature -40 - 70 Power Supply Input 12 VDC Number of cards 20,000 Capacity of records 100,000 Operational humidity 0 to 95% RH Working voltage 9.5 V to 14 VDC Current consumption max. 100 mA
