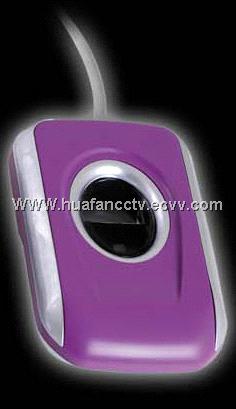

Excellent scan quality, encrypted fingerprint date, rotation invariant, works well with dry, moist or rough fingerprints, compatible with DigitalPersona Pro and integrator products.
Product Features:
Pixel resolution: 500 dpi (average x ,y over the field)
Scan capture area: 14.2mm (nom .width at center) 18.4mm(nom .length)
Reader size(approximate):81.4*49.5*20.5mm compatible with USB2.0(Full Speed) specification
Supply Voltage:5.0v±5% supplied by USB
Supply Current-scanning:190MA(Typical)
Supply Current-idle mode:140MA (Typical)
Supply Current-suspend mode:1.5MA(Maximum)
ESD Susceptibility>15kv, mounted in case
Temperature, operating:0℃-4℃
Humidity,operating:20%-80% non-condensing
Temperature,Storage:-10℃-60℃
Humidity,Storage:20%-90% non-condensing
Scan date:8-bit grayscale (256 levels of gray)
Standards Compliance: FCC Class B,CE,ICES,BSMI,MIC,USB,WHQL.
