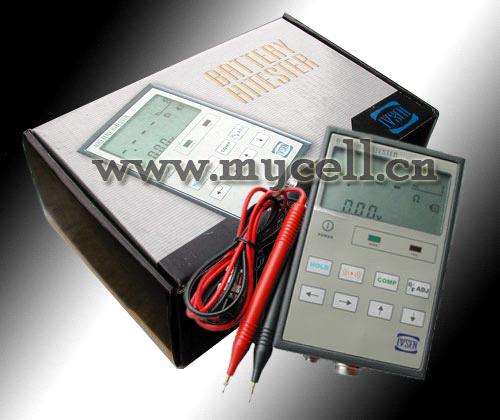

FEATURES:
1. Measurement Adopt Standards of GB/T11013-1996 and IEC61436:998.
2. Measure AC impedance promptly and directly.
3. Digital Circuit design with high integration and strong anti-jamming. Constant AC current less than 20mA achieves a stable performance.
4. Wide LCD provides steady and simple digit displaying.
5. Specific 4-line measuring leads work effectively against any error causing by resistance contact.
6. Auto-switching in voltage and impedance measurement.
7. Measurement rang: Voltage 0-20V; Impedance 0-2000 mΩ.
8. Synchronously display the impedance and voltage of the cell or battery pack detected.
9. Wide sphere of measurement including all type of cells and battery packs (<20V).
10. Portable design and utilize build-in 3.7V Li-Ion battery with high capacity.
TECHNICAL PARAMETERS:
1. Accuracy rate of impedance measurement:
a) 0～200 mΩ (±0.5% rdg. + 0.25% dgt.) Rate: 0.1 mΩ
b) 200～2000 mΩ (±0.5% rdg. + 0.25% dgt.) Rate: 1 mΩ
2. Accuracy rate of voltage measurement:
a) 0～20V (0.5% rdg. + 0.25% dgt.) Rate: 10 mV
3. Working Ambient Temperature: 0～40℃
4. Standard Temperature: 20±5℃
5. Relative Temperature: 20～80%(20℃
6. Working Voltage: DC5V 500mAh
7. Build-in Li-Ion Battery: 3.7V 1500mAh
8. Power Consumption: ﹤10W
9. Dimensions: 90mm×140mm×25mm
10. Weight: around 0.5Kg
