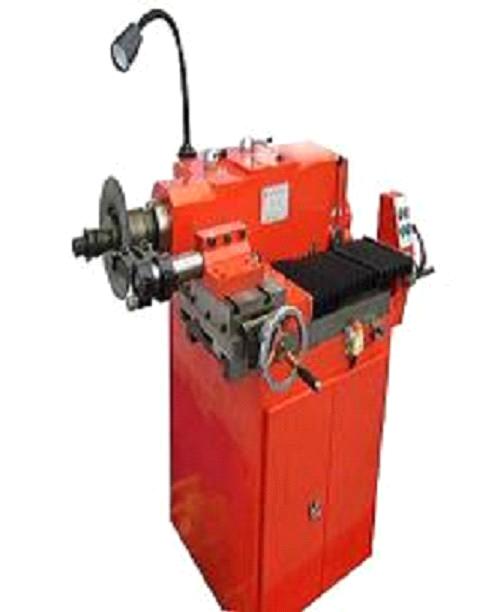

BRAKE DRUM/DISC LATHE C65

The machine is suitable for processing the brake drum and plate of cars, micro-automobiles and large or medium-or-small sized autos.

MAIN FEATURES OF THE MACHINE

Available to various types of cars including medium trucks.

Multipurpose applications to work-pieces, including brake hubs and disks even part of brake shoes if special moulds can be provided.

High machining accuracy and serviceability.

Equipped with perfect work-holders/moulds and necessary accessories.

Main Specifications

Range of Processing Diameter Brake Drum:   180-660 mm

                             Brake Plate:  450 mm

Working Travel Slide Board:                350 mm

Spindle Speed:                             30, 50, 80 r/min

Feed:                                      0.15, 0.30, 0.45 mm/r

Cross Feed Rate:                           3 mm

Motor Power:                               1.5 k w

Overall Dimensions (L*w*H):                 1100*908*1172 mm

Packing Size (L*W*H):                       1400*1000*1200 mm

Weight of Machine (N.W/G.W):               860/920 kg

Special Accessories:                       Fixture for brake shoe, Brake Drum Dolly
