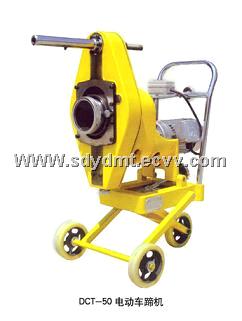

ELECTRIC SHOE BORING MACHINE DCT-50

MAIN USES

It is widely used in car chassis production line, bus service and truck service centers. Direct clamping on the car, high accuracy, simple shaped and easy to handle, and it relieves us of frequent disassembling brake shoe. It is necessary for motor repair.

It is suitable for these types of automobiles: All series of JIEFANG AND DONGFENG; STYER, HONGYAN semi trailers.

Main Specifications                      Unit    DCT-50

Suitable Diameter                               380-460 mm

Suitable Width                                  230 mm

Spindle Speed                                35 r/min

Motor Power                                  1.1 k w

Overall Dimensions (L*W*H)                450*8200*780 mm

Packing Size (L*W*H)                       520*860*800 mm

Weight (N.W/G.W)                           80/100 kg
