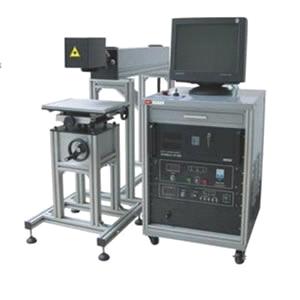

CO2 Oscillating Mirror Laser Marking Machine

Description:

Laser machine: it is equipped with original laser machine imported from America and the laser is discharged steadily so it's seldom fall off and its life is as long as 45,000 hours. Its disposable investment is high but the cost for use and maintaining is very low. Other manufacturers adopt domestic CO2 glass tube which has to be changed every 1-3 months. CO2 gas will leak so even if it's not used it had to be discarded after one year. It will often fall off and the cost for use is high.



Principles: CO2 laser marking machine is a gas laser machine whose frequency band wave length of infrared light is 10.64um. CO2 gas is filled in the discharge tube as the medium to produce laser. When high voltage is added to the electrode, it will produce glow discharge in the discharge tube and then the gas molecule will discharge laser. After the energy of laser is strengthened, it will form the laser beams to process the materials. Computer-controlled resonance mirror can change the path of the laser beams so that automatic marking can be accomplished.



Main Characters:

1.   With imported English porcelain syntonic cavity which is stable, dew free, efficient in conversion and has no plating sheet peel off, the laser has much longer life.

 2.   Fully sealed and maintenance-free laser optic system with its key components all imported from America or England, realizes usage at installation without adjustment and stable running with little maintenance .

 3.    Unique integrated controller makes all operations to be done on one platform,which facilitates operation .

 4.  Double water cooling systems (internal and external), together with professional cooling unit are accommodable to wide range of environment temperatures, assure labeler of 24 hours' continuous reliable performance; it can be directly applied to mass manufacturing stream lines

 5.  Under English windows interface, the applied system is compatible for file types such as PLT, BMP etc of software: AutoCAD, CorelDraw, Photoshop for example





Main tech-specification:
