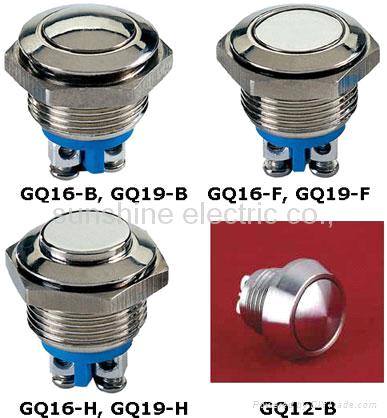

Non-illuminated pushbutton switches, push button switches - Stainless steel Available (GQ16-B, GQ16-H, GQ19-B, GQ19-H, GQ16-F, GQ19-F, GQ12)
1) Max. current/voltage rating with resistive load: 2A 48 VDC
2) Insulation resistance: 1 000 MW min. at 500 VDC
3) Initial contact resistance: 50mW max. at 1A 2V
4) Dielectric strength: 2, 000Vrms, 50Hz mini.
5) Electrical life: 100, 000 cycles at full load
6) Mechanical life: 1, 000, 000 cycles
7) Electrical function: OFF - ON
8) Torque: 5 Nm min. - 14 Nm max. applied to nut
9) Panel thickness: 1 ~ 6mm max.
10) Operating temperature: - 20 ~ 55oC
11) Degrees of protection: IP40 IP 65
12) Contacts: Silver-plated brass
13) Bushing: nickel-plated brass, gold-plated brass, stainless steel
14) Curved actuator: nickel-plated brass, gold-plated brass, stainless steel
15) Screw terminals
16) Panel cut-out: dia. 16mm and Dia. 19mm, 12mm
