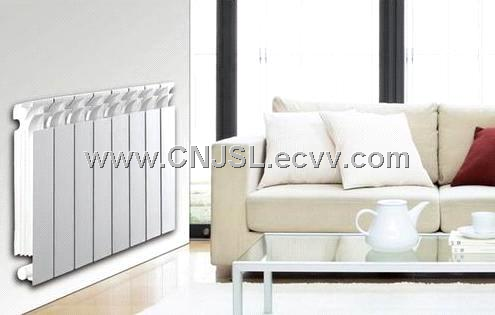

Die-casting Aluminum Radiator

Die-casting Aluminum Radiator

Die-casting Aluminum Radiator

  Prev Product Contact Now Next Product

Detailed Product Description

Die Casting Aluminum Radiator

No
Model
Dimension
(HxWxH) mm
Central Distance
(H) mm
Water
Content
L/pcs
Weight
(kg/pcs)
Thermal
Output
(W)
The Max Pressure (Mpa)
Working Pressure (Mpa)
Available Are (m2)

1
JSL-B300A
382x80x85mm
300mm
0.25L
1.03kgs
120W
3.6Mpa
1.0-2.0
1.8-2.3
2
JSL-B300B
392x80x85mm
300mm
0.25L
1.1kgs
140W
3.6Mpa
1.0-2.0
1.8-2.3
3
JSL-B350
431x80x85mm
350mm
0.27L
1.2kgs
168W
3.6Mpa
1.0-2.0
2.0-2.8
4
JSL-B500A
582x80x85mm
500mm
0.38L
1.4kgs
196W
3.6Mpa
1.0-2.0
2.4-3.2
5
JSL-B500B
582x80x97mm
500mm
0.41L
1.48kgs
216W
3.6Mpa
1.0-2.0
2.5-3.3
6
JSL-B600
682x80x85mm
600mm
0.45L
1.60kgs
216W
3.6Mpa
1.0-2.0
2.7-3.6
Accessories left:
1.       radiator lge  2.radiator  3.radiator bracket  4.universal kit  5.air vent valve  6.assembly tool

Colors available: red. Green, black, silver, red, yellow, blue, white, pink etc



Feature:
1.ADC12 aluminum of international brand is the special anti-friction and anti-erosion material for die-casting.
2.The material of products has evident superiority over bronze,copper and steel in heat transfer effciency due to its low thermal inertia.
3.The aluminum in liquid state in 730oC is cast into complete forms once for by 630T-800T automotive die-caster.
4.The homogeneous-material welding technique adopted in sdaling prevents the welding spots from eroding to a largest extent.
5.Twice unique Ty3318 anti-erosion inner coatings guarantee the security ofthe products with the PH of heating water 5-12.
6.The innovative thickened design of channel enables the products to undertake operation pressure of 0.1Mpa-2.0Mpa, and it is also applicable for heating systems≤120oC.
7.Electrostatic epoxy-coated and twice baked in 200°c, the products have smooth,long-lasting and bright surface and do not release harmful elements such as lead.


Container:
20’ft: 5600pcs /  40HQ:14500pcs

Post Date:5/19/2008
Expiry Date:5/14/2009
