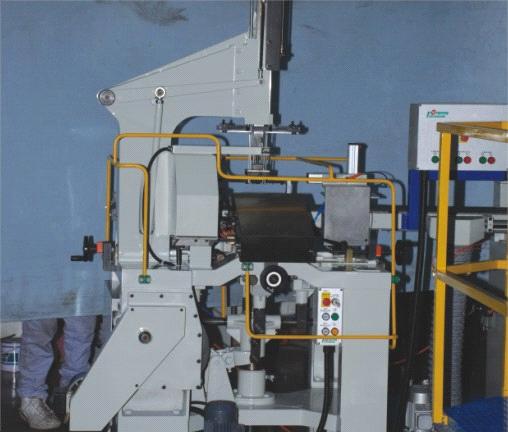

HM-ZD600 Automatic Carton box maker

Detailed Product Description

HM-ZD600 is the most advanced and most efficient equipment of producing perfect bottom-locked cardboard cartons like shoe boxes, shirt boxes,garment boxes, gift boxes and etc.

Main Characteristic:

1.Automatic paper feed by Feida Device;

2.Equip hear exchange gluing system;

3.Four corner pasting at one time with galvanothermy melting point device;

4.Air pump belts control by the division device;

5.Orientation of the box and paper wrap control by adjust device, tolerance between 0.2mm

6.Automatic pick up device between the conveyor belt and box forming machine;

7.Series step of box molding for box putting in, coating and folding edge;

8. Automatic mulfunction diagnoses and PLC control;

Box size:: 600*400*130mm(max); 120*50*12mm(min)

Thickness of paper:80-160g/m2

Size of folding edge: 7-35mm

Speed:20pcs/min
