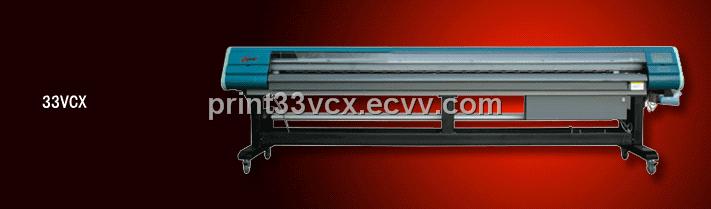

33VCX Large Format Inkjet Printer

Detailed Product Description

Model	APRINT 33VCX
Print technology	Xaar 130/600DPI, 8/12 heads
Resolution	Up to 1440DPI
Printing Quality	Photo effect up to 1440DPI
Max media width	3300mm
Max printing width	3250mm
Min media size	A4 or 210mm length
Output(12 heads)	3 pass	46m2/h
	4 pass	35m2/h
	6 pass	23m2/h
	8 pass	17m2/h
Showing screen	Eight keys operation board, chinese LCD show, detecting the fault outomatically
Ink type	Solvent-Eco solvent base ink: C, M,Y,K
Ink supply	300ml subsidiary ink bottles, ink pump added, the capacity of ink bottles 1000ml each color
Ink detect	Detecting the ink automatically, when the ink volume low it alarm
Printing Driver	Standard SANE RIP, supports multiple third-party RIP
Operating system	Window2000,XP,etc
Media Types	PVC, Flex, vinyl, window film, ployester, etc.
Media Transmission	Roll media less than 50kg /roll, Auto feeding
Printing head height	2mm-4mm, adjustable
Media heating	Automatic heating control, adjustable
safety	Internal security exigency stop design
Noise Level	Operation: less 70 dB, Standby: less 40 dB
Net Weight/ Size	L 3,900mm x W 870mm x H 1,100mm / 330kg
Gross weight /size	L 4,500mm x W 925mm x H 1,200mm / 368kg
Power Consumption(AC 220V)	Print: ≤ 3A
	Heating: ≤ 5A
Operating Environment	Temperature: 20oC-28oC
	Humidity: 40%-70%
