Push Button Switch & Pilot Devices

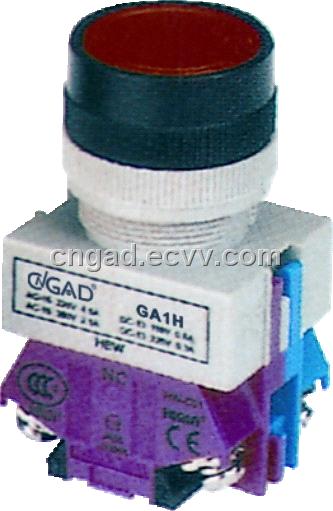

Type: GA1-22H-11D/R-LED24V
Description: Push button with light, 1no+1nc, red, led24v
Main technical parameters
1) Fixing size: 22mm, 25mm, 30mm
2) Snap-on 10A contact blocks
3) Transformer or full voltage
4) Incandescent or LED illumination
5) Slow make, double break, self cleaning contacts
6) Modular construction for maximum flexibility
7) IP65 watertight/oiltight panel
8) Available assembled or as sub-components
9) Large M3. 5 screw terminals with captive sems plate
10) Button styles include flush, extended, mushroom, or key and all
11) bodies are crafted from fracture-resistant nylon.
12) Self cleaning contact mechanisms allow for a current rating of10A, which reduces the need for various contact materials.
