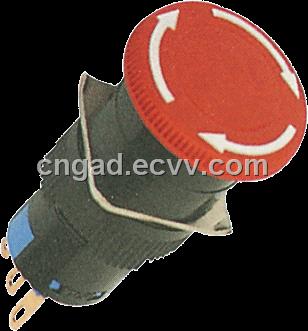

Push Button Switch (16mm)

Type: GA6Y

Application and main technical parameters
1) Mounting size: 16mm
2) Operational Voltage: ≤220AC or ≤110DC
3) Operational temperation: -5 to +40
4) Operational humidity: 45% to 90%
5) power-frequency withstand voltage: 2000V AC, 1min
6) contact resistance: ≤20mΩ
7) Mechanical durability: Monentary 1000, 000, maintained 100, 000
8) Electrical durability: Monentary 500, 000, maintained 100, 000
9) Protection grade: IP40
