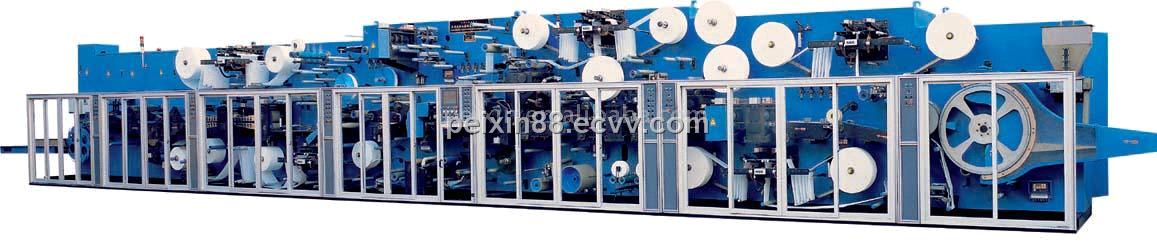

Full-Servo Baby Diaper Machine

Function and Assemble Parts

1.It can produce four size (S,M,L,XL)of products by exchanging cutting tools.

2.The high-speed teeth-like crusher can be used to crush the treated and untreated pulp, it adopts insulative cover and safety-protective door.

3. SAP mixed flutt pulp,servo motor can control supplying amount.

4.Raw materials'auto splicing and mid-unwinding, servo motor control tension.Adopt eight set of rectifiers.

5.Frontal tape, side tape and elastilc waistline are added on the machine.Leakage barrier is molding on the machine.

6.The whole machine is driven by servo motor and with PLC control, auto reject wasted products,breakdown show on the touching screen.

7.As per customer's request, equip with two-outlet stacker. 8.The main bearings and conveyer belts are international brands.

Main Technical Parameter

1.Designed speed:200m/min (500 pcs/min for M size)

2.Stable production speed:400-450 pcs/min

3.Power: 3 phases 145KW(380V 50HZ)

4.Reject rate : ≤2%(excluding caused by hot melt applicators failure) 5.L×W×H:20m×2m×2.9m
