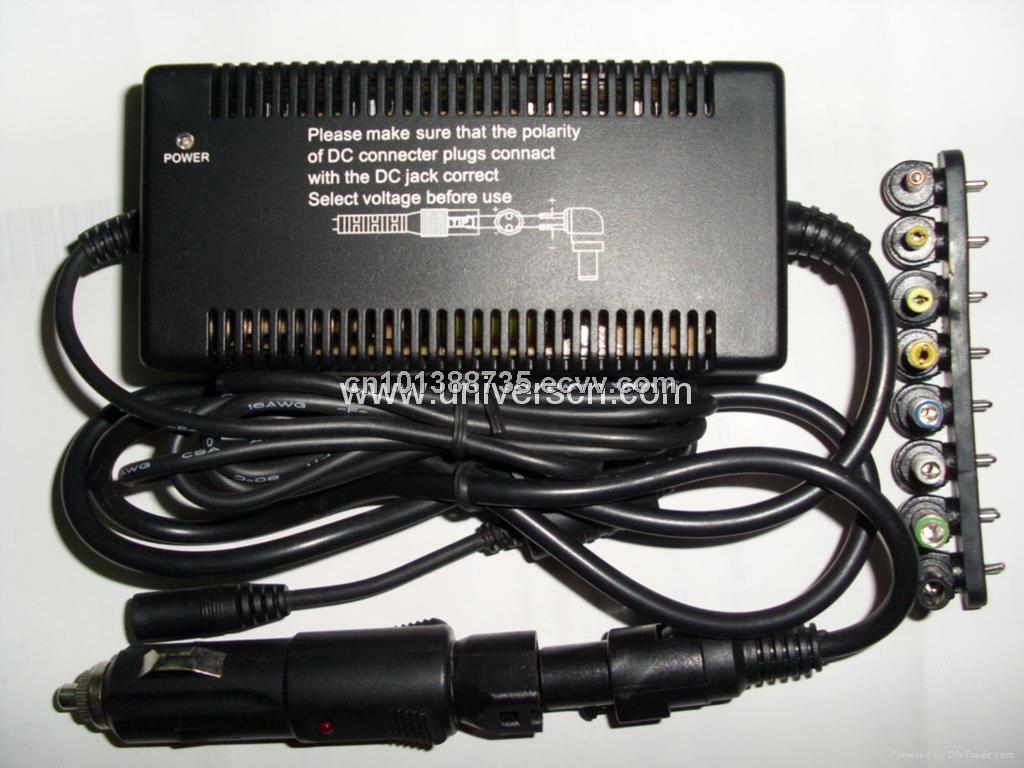

universal laptop car and Airplane adaptor DC80W

General Description:
This Model is a switching-mode power supply, operation at input DC voltage 11V to 16V and output DC voltage of 16V/18V/19V/20V DC at 4000mA load, with many protection functions use for the notebook computer, power supply by 12V car battery .
Electric Characteristics:
No. Item Specification
1. Rated Input Voltage DC12V
Vibration Input Voltage Range DC11V-16V
2. Input Rated Current 8AMP
Input Min. Current 100mA
3. Input Power 88W
Efficiency >88%(TYP)
4. Output voltage:16V/18V/19V/20V(+/-0.6V NO LOAD) DC16V-20V
5
Output voltage:16V/18V/19V/20V(+/-0.6V@4A LOAD)
Output current: 4A) DC16V-20V
4AMP(max)
6 Ripple Noise 500mV
7 Line Regulation 1%
8 Load Regulation 1%
9 Short Circuit Protection yes
10 Output over voltage protection:>24V yes
* Normal Operating Temperature and Humidity:
6.1 Operating Temperature: 0℃ to 40℃
6.2 Humidity: 20% to 80%
* Storage Temperature and Humidity:
7.1 Storage Temperature: -10℃ to 70℃
7.2 Humidity: 10% to 90%

FOB Price:

USD7-8Shenzhen
