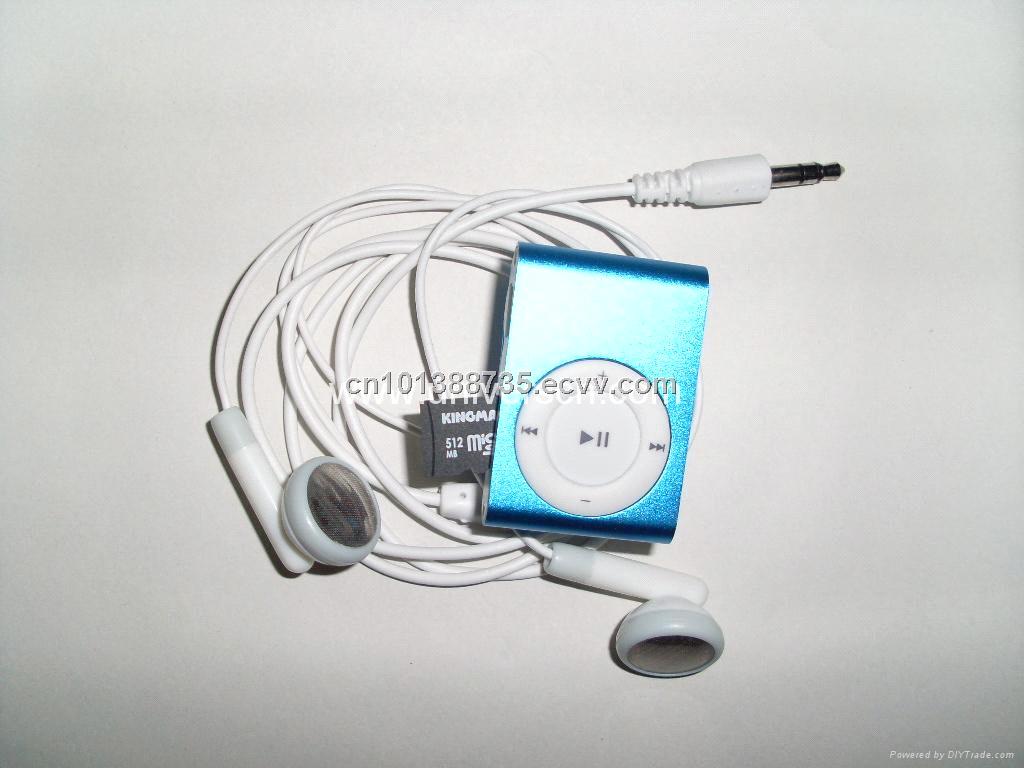

Introduction
This portable MP3 player is frequency decode device,which can be inserted MICRO SD/T-FLASH storage card and completely supports USB Mass Storage.
It can be used as a card reader.Through its USB connector,it is very convenient to read,store or delete the files on a 16MB-2GB MICRO SD/T-FLASH storage card.
The player’s USB connector is USB 2.0 high speed and totally combined USB 1.1 treaty as well.The player supports layer 2 of MP3 and WMA music format and 8-320kbps compressing rate.
DECLARATION
Irregular use or operation of this MP3 player,such as sudden POWER-OFF,may cause data lost,therefore the important data should be copied and saved by CD-R or other ways.Whereas every effort has been made to ensure this manual’s contents to be complete and accurate,our company holds no legal liability to any data missing for the user’s irregular use and mishanding of this product.The company reserves the right to modify hardware and software mentioned in this manual without any announcement in advance.
CAUTION
a. Please read this manual carefully before using the new Player.
b. Please select the authorized copyright and standard MP3 music format.
c. The MP3 music file all can be played.
d. When formatting the card by PC,please select ‘FAT’ rather than ‘NTFS/FAT32’, or the MP3 music file in the card,will not be played.
e. In the process of copying files,please do not cut off the USB connection or shut down the computer,or the files will not be able to play in normal.
f. The player is pre-set by normal EQ,medium volume and palying from the first rack.
g. Please take off battery if the palyer will not be used for long time.
h. If the palyer could not work by accident,please take off the battery for 3 seconds and then put it into again and restart the player.
i. Please take off battery if the player is being connected with computer for a long time.
1.Operation instruction
【■ Ⅱ ▼】 PAUSE/PLAY
To turn on/turn off:long press it to turn on the payer.It automatically enters into playing sate while red light is shining.
To pause/play:when the palyer is palying,short press it to pause while red light is shining and green light is quickly blinking.Short press it again to replay.
When the palyer is playing,long press it to enter into STAND-BY state while green light is bright. Long press it again to turn down the player while both of two lights are off at the same time.
The player will be automatically turned off after 30 seconds if there is no operation in STAND-BY state or the battery is no energy.
【VOL-】【VOL+】
To decrease/increase volume:press it to select.
【PRE】【NEXT】
To previous/next track:press it to select
2,U Disk Function
The player has USB Mass Storage function.It needs to instalL driving software if the operation system is WIN98 or not above while does not need to in WINXP/WINME/WIN2000.When the player is connected to computer,the red and green lights are on at the same time.The U disk is available when its icon appear on the computer.
The player can transmit files via the USB cable connecting its USB connector and the computer’s.It supports WINDOWS98/ME/200/XP operation system.When USB connection is made,the red and green lights are on at the same time. Any MP3 music file can be palyed in this palyer.
NOTE:
It needs to install our company’s software first in WINDOWS98 operation system or below. If your computer is in a low configuration,please turn on the player before connecting it to the computer;otherwise the computer cannot identify the USB connection.Don,t take off the USB cable when the palyer is downloading files,or it will damage the player.
3.Problem&Solution
P:No sound when the player is palying.
S:Please adjust the volume if the volume is too low.If it is being connected to the computer,please break up the connection.Please put music files into the card if there is no file available in the card.
P:It cannot transmitt music file when connected to the computer
S:Please check whether the USB connection is correct or not.
P:The player can not be turn on.
S:Please check if the battery is with energy.
P:The player can not play the MP3 files.
S:Please check if the system format of MICRO SD/T-FLASH card is FAT(FAT16).
4.Technical Specificatioins
|
Card Type |
MICRO SD/T-FLASH card 32M-2GB |
|
Card Reader |
MICRO SD/T-FLASH card USB2.0 high speed |
|
Card Filse System Format |
FAT(FAT16) |
|
Battery |
Lithium GC-032323P |
|
Operation Indication |
Red(power light)/Green indicative light |
|
Item Size |
42*28*12mm |
|
Signal Noise Ratio |
88dB |
|
Earphone exporting Ratio |
32OHM 10mv |
|
Export Frequency Range |
20hz22khz |
|
Music Foramt |
Mp3 WMA |
|
Consecutive Playing |
2-4Hrs |
|
Compression Ration |
8Kbps-320kbps |
|
Other |
Voice Gradually increasing Function |
|
Packing size |
105*55*44mm |
| FOB Price: | USD8.9-10Shenzhen |
