Sand Maker, Mining Machine

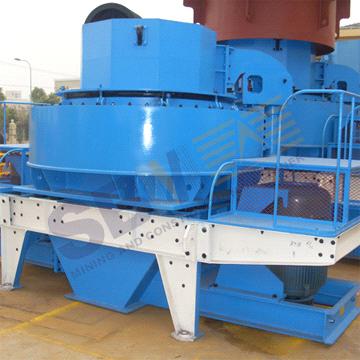

SBM VSI Sand Maker Application:SBM VSI sand maker is designed by reputed German expert of Shibang and every index of SBM VSI crusher is in world's leading standard. SBM VSI crusher incorporates three crushing types and it can be operated 720 hours continuously. Nowadays, SBM VSI crusher has replaced hammer crusher, roller crusher, roller ball mill, etc. and become the mainstream equipment in sand making business.
SBM VSI Sand Maker Technological advantages:SBM VSI sand maker incorporates three crushing styles; its feeding style incorporates material on material, materials on iron and falling at sides. Customers can adjust the machines according to their own demand. SBM VSI crusher realizes multiple functions in one machine, which is a big breakthrough in sand making field.
Excellent performance and long service time of SBM VSI sand maker: 1. special light oil lubrication systems ensures the temperature to be within 25℃ 2. brand new automatic protection device provides the machine with vibrating, oil filtering and warning system; 3. new type oil filtering system ensures the bearings and other transmission system are not abraded and prolong their service time; 4. Choice wearable materials prolong the service time of the machine by 40%. So the cost is lowered by more than 40%.
SBM VSI Sand Maker Specifications
Model
B-VSI7611
B-VSI8518
B-VSI9526
B-VSI1140
Capacity(t/h)
Feed both at center andat sides
120-180
200-260
300-380
450-520
Feed at center
60-90
100-130
150-190
225-260
Max feed size(mm)
Sofe material
＜35
＜40
＜45
＜50
Hard material
＜30
Rotation speed (r/min)
1700-1890
1520-1690
1360-1510
1180-1310
Power(KW)
110-150
180-220
264-320
400-440
Overall dimension L*W*H (mm)
3700*2150*2100
4140*2280*2425
4560*2447*2778
5000*2700*3300
Weight (t)
7.8
10.3
16
25.6
Power supply
380V, 50HZ
Vibrating sensor
detect range: 0.1-20mm/s continous and adjustable
Lubrication and hydraulic station
power
2*0.31KW
Safety assuance
Double oil pumps assure enough oil supply; automatic switch off with no oil stream or hydraulic strength; lower the temperature with cool water in summer; raise the temperature with motor in winter.
Overall demension L*W*H (mm)
820*520*1270
Power of oil tank heater
2KW
