Aggregate Grinding Mill, Mining Equipment

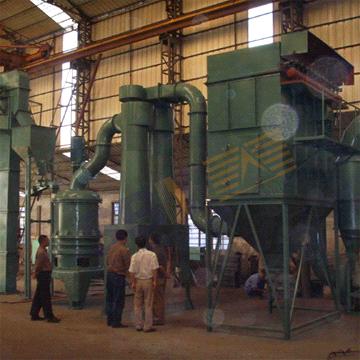

SCM series super thin mill is on the bases of our company's production experience for more than 15 years. We absorb advantags from the same trade abroad and at home. We review, research and try on 12 kinds of mills and horizontal hammer crushers. And finally we developed this high-efficiency and low-cost super thin mill by investigation and trial.

This SCM series super thin mill grinding mill is an equipment which produces thin powder and super thin powder. It is applicable to non-flammable and non-explosive materials with hardness less than 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alum earth, graphite, fluorite, variscite, potash ore, floatstone.

SCM series S super thin mill Technic parameter :

Model	SCM6015	SCM8021	SCM1027
Roller number	15	21	27
Diameter (mm)	Φ600	Φ800	Φ1000
Ring number	2	2	2
Main unit speed(mm)	235	235	235
Max. feeding size(mm)	10	10	10
Final size (mesh)	325-2500	325-2500	325-2500
Capacity (kg/h)	350-2500	600-4000	900-6000
Overall dimension (m)	10×2×5.5	12.4×2.5×5.8	14.5×3.8×6.3

Note: This specification is just reference, any changes are subject to the products.

Post Date:	10/28/2008
Expiry Date:	10/23/2009
Other Price Terms:	CIF, CNF, negotiable
