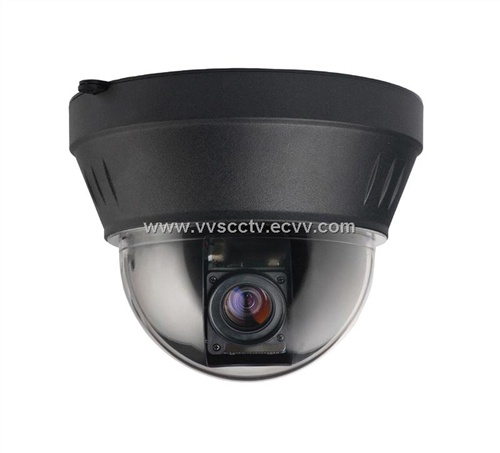

Mini PTZ(VVS-PTZ846)

Next Product

Detailed Product Description

Sync System	625 lines, 50 field/S
Imaging sensor	1/4 " Sony Super HAD CCD
Effective Image (H X V)	380,000
Resolution	400 /470 Lines or 520 /580 Lines(enhance)
Video output	Multiple video output, 1.0±0.2Vp-p
S / N	≥50 db
Illumination	Color 1.5/0.05 Lux or 2.5/ 0.07 Lux
White Balance	Automatic / Manual
Gain Control	Auto Gain control
Zoom	100 times (10x optical X 10x digital)
Zoom Length	4.2mm/42mm
Digital shutter	Auto 1/50 – 1/120, 000 S continuously / manual
Pan rotation range	360 ° continuous rotation
Tilt rotation range	0 ~ 90 ° with auto-flip
Pan speed	0.5° ~ 160°/ s
Tilt speed	0.5° ~ 90° / s
Presets	128
Decoders	Built - in
Baud rate (RS485/422)	2400/4800/9600/19200 bps
ID range	1～254
Operation Temperature	- 10°～50°
Environmental Humidity	0 ~ 95％ (non-condensing)
Protection Grade	IP66 ,1500W Lightning proof and surge proof, all-day defend cover
Power Consumption (W)	≤ 9 W
Dimensions (H X D)	120 X 160 (mm)
Communication	RS485/422 Bus
Power Supply	DC12V/1.5A
Protocol	Built-in multi-protocol (Pelco-P/D)
Net Weight	1.1 (kg)
Gross Weight	1.5 (kg)
