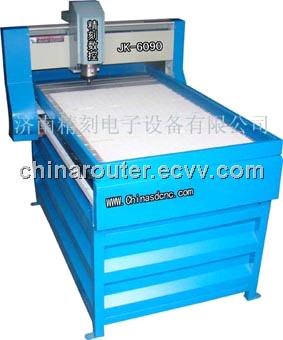

CNC Router/Metal Engraving Machine

Detailed Product Description

FEATURES:

1.The CNC router adopts the mode of saving the intermittence.

2.memory to insure the processing point when the blade is broken or postpone situation.

3.Specific saving mode of different points.

4.Gantry mode movement is more durable and will not distortion after long time use and the position precision is much better.

5.The large power cutting spindle does not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth.The machine is suitable for the architecture mould sign industry,school,enterprise,government to use.

6.The Super Star CNC router can be widely used for architectural model,schools,companies and governments.

PARAMETERS :

Modle	JK-6090
Machine body	whole cast iron or cast aluminum
Work dimensions	600×900mm
Body dimensions	800×1200×1200mm
Z-zxis working area	100mm
Max.Feeding height	600*900mm
Cut thickness of material	≤30mm
Max.Speed	6000mm/min
Working speed	0-4000mm/min
Mechanical precision	0.01mm
Software	type3,Artcut,Artcam software
Max.Power consumption	1800W
Power source	AC 220V/50Hz
Driver type	stepper motor
Spindle	1500W variable speed,water-cooled
Spindle speed	0-24,000rpm
Blade diameter	1-6mm
Control system	NCTUDIO or DSP
Command	HPGL.G code,u00,mmg,plt
