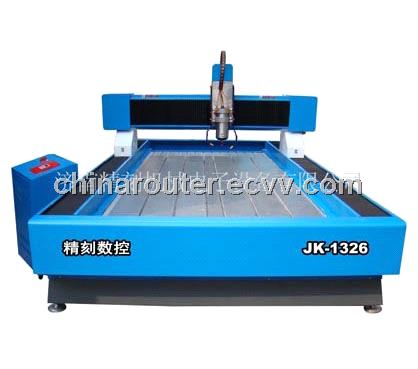

CNC Router/Glass and Stone Engraving Machine

Detailed Product Description

1.Three axle adopts linear guide rail,it runs smooth and has high precision.

2.With the strong steel structure of the machine which is invariant,the table back has lining steel plate,so the rigidity is good.

3.With constant power motor of main spindle,it has powerful cutting capacity and high efficience.

4.Adopting u-plate flush type all off-line control system makes operation more convenient.

Technical parameter :

Modle	JK-9015	JK-1218	JK-1326
X,Y working area	900×1500mm	1200×1800mm	1300×2600mm
Z working area	200mm	200mm	200mm
Table size	1480×2200mm	1480×2500mm	1480×3000mm
Max. Speed	20m/min	20m/min	20m/min
Max. Working speed	10m/min	10m/min	10m/min
Working precision	0.005mm	0.005mm	0.005mm
Repositioning Accuracy	0.05mm	0.05mm	0.05mm
Command	G code,u00,plt	G code,u00,plt	G code,u00,plt
Surroundings for software	Windows98/2000/xp	Windows98/2000/xp	Windows98/2000/xp
Power(not include the spindle)	2000W	2000W	2000W
Power source	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Main spindle power	2.2-4.4KW(Permanent power)	3.3-6.6KW(Permanent power)	3.3-6.6KW(Permanent power)
Main spindle speed	0-24000rpm	0-24000rpm	0-24000rpm
Drive motor	Stepper motor	Stepper motor	Stepper motor
