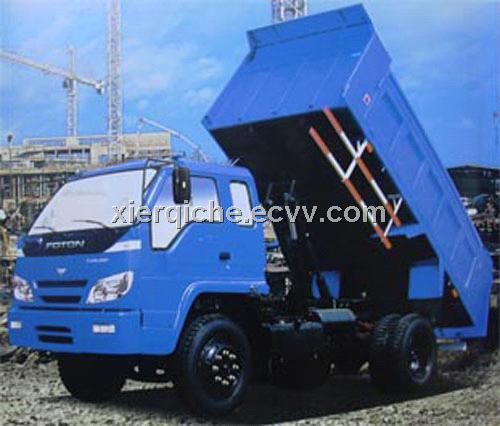

dump truck

Detailed Product Description

ZZT3101
chassis	model		BJ3103DDPFA
	category		Ⅱ
	manufacturer		BEIQI FOTON MATOR CO.,LTD
	axle		2
	wheel base（mm)		3700
	wheel track（front/rear mm）		1730/1721
	tire size		9.00-20,8.25-20
	tire		6
engine	model		YC4D130-20
	manufacturer		Guangxi Yuchai Machiney Co.,Ltd
	delivery capacity（ml）		4214
	fuel		diesel fuel
	rated power（Kw)		96
	emission standard		GB17691-2001 the second stage, GB3847-2005
	emission standard		GB17691-2001 the second stage, GB3847-2005
frame	front	type	steel plate spring
	front	quantity	10
	back	type	steel plate spring
	back	quantity	12+9
car load	dimension parameters	overall dimensions（mm)	672023002720
		LWH	672023002720
		interior cargo body dimensions（mm)	43002200600
		LWH	43002200600
		cubage（m3)	5.7
		front overhang/rear overhang(mm)	1260/1760
	quality parameters	approach angle/departure angle(°)	28/20
		curb weight(Kg)	5570
		rated payload(Kg)	4010
		gross vehicle weight(Kg)	9775
	max. speed(km/h)		75
	Persons in cab (persons)		3
