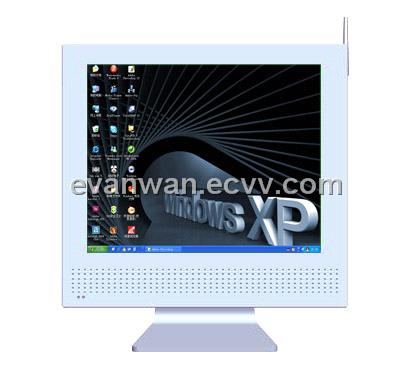

All in one computer Bare Bone PPC-1746

CPU

Intel Core 2 Duo / Core Duo / Core Solo Processor with 533/667MHz FSB

Chipset

Intel 945GM + ICH7-M

Memory

1x DDR2 DIMM Socket accept 667/533/400MHz up to 2GB

BIOS

Award flash BIOS

HDD

3.5" x1 and 2.5" x 1

Optical Device

Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW

Display

Display Type : 17" SXGA TFT LCD
Resolution : 1280 × 1024
Max.color : 16.7M
Luminance : 300 cd/m2
View Angel : 178°(H) , 178°(V)
Pixel Pitch : 0.264 x 0.264 mm
Contrast Ratio : 1000 : 1
Response Time : 5 ms
Power Consumption : 21.9 W
LCD MTBF : 50,000hrs

Audio

Build-in 2 x 2W stereo speakers
Intel ICH7-M ,w/AC97 2.2 compliant , Multi-stream Direct sound and Direct sound 3D acceleration

LAN

Single LAN onboard: 1x Realtek RTL8111B (Gigabit ) 10/100/1000 Base T ,full duplex with RJ 45 connector onboard
Compliant with IEEE 802.3x

USB Port

Max . 6x USB2.0 ports

VGA Port

Integrated in 945GM chip with DVMT 3.0

Multi-Media Card Reader

CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)

Wireless LAN

32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption
802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)
802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)

Expansion Slots

1 x PCI slot

Back panel I/O Port

1xPS/2 Keyboard: 1xPS/2 Mouse;1xRJ45;2xusb 2.0 ;1xParallel;3xserial;1x VGA;
1xAudio I/O;1xPower switch;1x DC jack

Watch Dog

SIO Chip Build in , programmable 1-255

Touch Screen

Internal USB or RS-232 interface controller (optional)
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million

Power Adapter

*internal 120W power board
*External AC adapter ,Input: AC/100-240V(50/60Hz)2.5A ,Outpu t : DC/19V.7.5A 140W

Safety

CE/FCC

Measurements

Len g th: 40.00 cm; Wide: 35.68 cm;Thick: 8.68 cm(Without the stand)

Weight
