Wireless CCTV Camera

Detailed Product Description

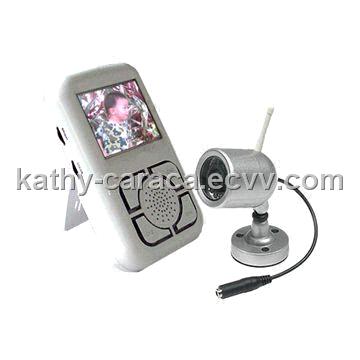

2.4GHz, 2.5-inch LCD wireless palm baby monitor
Small palm size of receiver for mobile usage
With 480 x 234 pixels resolution
With 11 LED light for night vision function and have weatherproof function
Receiver built-in a big rechargeable Li-battery
4-channel operation allows multiple (1 to 4) camera system
380TV lines sharp picture display
Built-in microphone in camera
Built-in speaker in receiver
Receiver for audio monitoring
Minimum 100m transmission distance without block
Brightness and contrast ratio (optional)
Specifications:
- Camera:
  - Frequency: ISM 2,400 to 2,483MHz
  - Imaging sensor: 1/3-inch omnivision color CMOS
  - Horizontal resolution: 380TV lines
  - CMOS total pixels:
    - PAL: 628 x 582
    - NTSC: 510 x 492
  - View angle: 62 degrees
  - Minimum illumination: 0 Lux/F1.5
  - Gain control: automatic
  - Transmission power: 10mW
  - Current consumption: 80mA
  - Modulation mode: FM
  - Bandwidth: 18MHz
  - Operating range: 30m/100m (obstructed/unobstructed)
  - Power supply: 5V DC or 5V Li-battery
  - Operating temperature: -10 to +40°C
  - Operating humidity: 85%RH
  - Dimensions: (W) 45 x (L) 45 x (H) 106mm
  - Weight: 130g
- Receiver:
  - Frequency: ISM 2,400 to 2,483MHz
  - Omni-directional antenna
  - Display: 2.5-inch LTPS TFT LCD screen
  - Channel: 1 to 4 (flip-type switch)
  - Intermediate frequency: 480MHz
  - Frequency stabilization: ±100KHz
  - Demodulation mode: FM
  - Receiving sensitivity: ±85dBm
  - Video output: 1Vp-p, 75 ohms
  - Audio output: 1Vp-p, 600 ohms
  - S/N ratio: >38dB
  - Power supply: 5V DC, built-in Li-battery
  - Operating temperature: -10 to +40°C
  - Operating humidity: 85%RH
  - Dimensions: (W) 75 x (L) 35 x (H) 130mm
  - Weight: 630g
