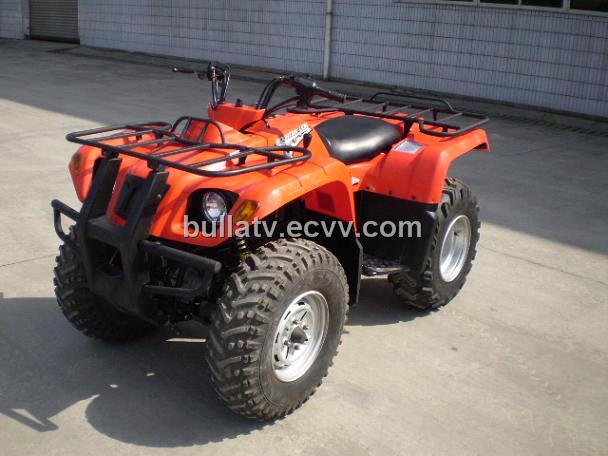

Sell 400CC ATV, 4WD (SJ400ST)

Detailed Product Description

Model:SJ400ST

Main Feature:400cc,oil cooling,electric/re-coil starter,auomatic clutch,shaft drive,2WD/4WD,dual a-arm,front disc & rear drum brake.

Specifications:
Engine Type: Single Cylinder, Oil Cooling and Air Cooling, 4 Stroke
Clutch Method: Automatic
Ignition Method: CDI
Starting Method: Electric & Pull
Transmission: Shaft Drive
Bore X Stroke(mm): 83*71.6
Compression Radio: 8.7:1
Maximum Power (kW/r/min): 16/6500±500
Maximum Torque (N.m/r/min): 26/5000±500
Lubrication: Pressing splash
Gear: 5 Forward and Reverse gear
Dimensions( L X W X H) (mm): 2100*1125*1175
Wheel Base(mm): 1240
Seat Height(mm): 860
Min Turning radius (mm): 3200
Min Ground Clearance(mm): 210
Brake: Front Disc & Rear Drum Brake
Front Wheel: 25*8-12
Rear Wheel: 25*10-12
Fuel Tank Capacity(L): 14
Engine Oil Capacity(ml): 900
Front Suspension: Dual A-arm
Rear Suspension: Integrate
Packing Brake: Mechanical Lock
Climbing Capacity:30
Max. Loading(kg): 220
Max. Speed(km/h): 75
Net Weight(kg): 270
Gross Weight(kg): 290
