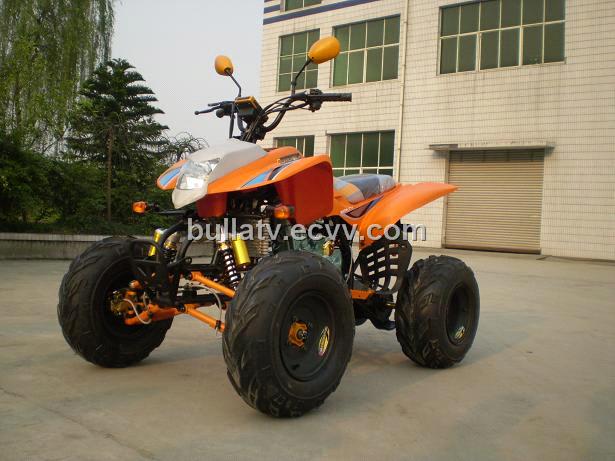

Sell 200CC ATV/Quads (SJ200ST-9A)

Detailed Product Description

Model:SJ200ST-9A

Main Feature: 200cc, 4-stroke, manual clutch, electric start, water-cooling, acyclic gear, inner reverse gear, chain drive, dual swing arm, lambdoidal shape higher and wider tyre, front & rear disc brake, attached piggy bag front shock absorbers, adjustable rear shock absorber, al-alloy muffler, hoopy fork, al-alloy foot rest, al-alloy rear bridge.

Specifications:
Engine type:single cylinder,water cooling,4 stroke
Clutch:manual
Ignition method:C.D.I.
Start method:electric
Transmission:chain
Displacement(ml):196
Bore*stroke(mm):63.5*62
Compression ratio:9.2:1
Rated power(kw/r/min):11/8000±500
Maximum torque(N.m/r/min):13/6000±500
Lubrication:splash
Gear:4 gear with reverse gear
Dimensions(L*W*H)(mm):1800*1120*1130
Wheel base(mm):1150
Seat height(mm):770
Min.turning radius(mm):2650
Min.ground clearance(mm):140
Rider capacity:2
Brake:front & rear disc brake
Front wheel:21*7-8
Rear wheel:20*9.5-8
Fuel tank capacity(L):4
Engine oil capacity(ml):900
Climbing capacity:20
Max.load(kg):150
Max.speed(kw/h):55
Net weight(kg):180
